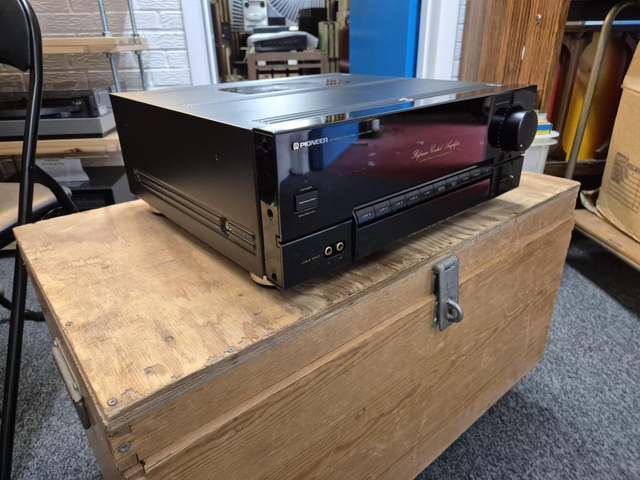

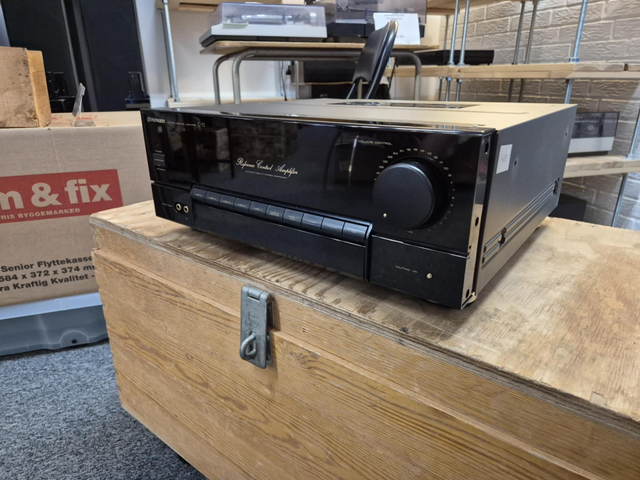

Pioneer C-73 forforstærker

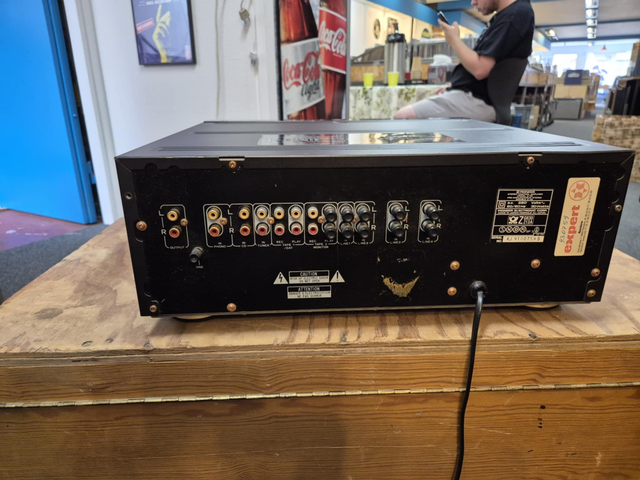

Connections

• Number of inputs:
• Phono 1 MM: 2.5 mV, 50 kOhm, max. 450 mV
• Phono 2 MC: switchable 0.25 mV, 40 kOhm / 0.125 mV, 3 Ohm

CD: 150 mV, 50 kOhm

• Tuner: 150 mV, 50 kOhm
• Tape Play 1, 2: 150 mV, 50 kOhm
• Aux 1, 2, 3: 150 mV, 50 kOhm
• Number of outputs:
• Tape Rec 1, 2: 150 mV, 1 kOhm
• Pre out: 1 V, 600 Ohm

Specifications

• Frequency response: 1 Hz - 150 kHz, +0 dB, -3 dB
• Distortion factor: 0.002 %
• Signal-to-noise ratio:
• Phono MM 1, 2:
• Phono MC 3:
• High level: > 106 dB
• Tone control
• Bass: 100 Hz, ± 9 dB
• Treble: 10 kHz, ± 9 dB
• Loudness:
• High Filter: - 6 dB / octave at 10 kHz
• Low Filter (Subsonic): - 6 dB / octave at 7 Hz
